Small Signal Product
FEATURES
225mW SMD Switching Diode
- Fast switching speed
- Surface mount device type
- Moisture sensitivity level 1
- Matte Tin(Sn) lead finish with Nickel(Ni) underplate
- Pb free and RoHS compliant
- Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code
BAW56, BAV70, BAV99
Taiwan Semiconductor
MECHANICAL DATA

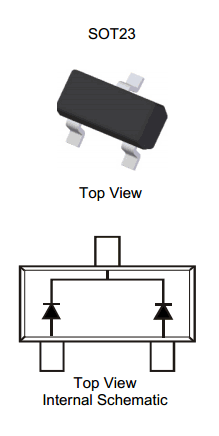

- Case: SOT-23 small outline plastic package
- Terminal: Matte tin plated, lead free,
solderable per MIL-STD-202, Method 208 guaranteed
- High temperature soldering guaranteed: 260oC/10s
- Weight: 0.008grams (approximately)
SOT-23
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS (TA=25℃ unless otherwise noted)
PARAMETER
SYMBOL
VALUE
Power dissipation
Peak repetitive reverse voltage
Repetitive peak forward current
Mean forward current
Non-repetitive peak forward
surge current
Pulse Width=1 sec
Pulse Width=1 µsec
PD
VRRM
IFRM
IO
IFSM
225
70
450
200
0.5
2
Thermal resistance form junction to ambient
Junction and storage temperature range
RθJA
TJ , TSTG
556
- 55 to + 150
UNIT
mW
V
mA
mA
A
oC/W
oC
PARAMETER
Reverse breakdown voltage
Forward voltage
Reverse leakage current
Junction capacitance
IR = 100 µA
IF = 50 mA
IF = 150 mA
VR = 70 V
VR = 0 V,
f = 1 MHz
BAW56, BAV70
BAV99
Reverse revovery time
IF = IR = 10 mA, RL = 100 Ω, IRR = 1 mA
SYMBOL
V(BR)
VF
IR
CJ
trr
MIN
70
-
-
-
-
-
-
MAX
-
1.00
1.25
2.50
2
1.5
6
UNIT
V
V
µA
pF
pF
ns
Document Number: DS_S1404011
Version: H14
|
| |
